Heat exchangers to TEMA & ASME.
Shell-and-tube exchangers, hairpin double-pipe, and air-cooled exchangers — engineered, fabricated, and tube-bundled under one workshop.
- Code
- ASME VIII + TEMA R / C / B
- Type
- Shell-Tube, Double-Pipe, Air-Cooled
- Surface area
- up to 2,500 m² per shell
- Tube count
- up to 3,000 per bundle
- Joints
- Expanded + strength welded
- Materials
- CS, SS304/316/321, Duplex, Inconel, Titanium
What we build.
Reboilers
Kettle and thermosiphon reboilers for distillation service.
Condensers
Overhead and surface condensers, vertical or horizontal.
Feed / Effluent Exchangers
Process-to-process heat recovery duty.
Coolers
Trim coolers using cooling water or tempered media.
Steam Generators
Waste-heat boilers and steam generators tied to process.
Air-Cooled (Fin-fan)
Forced and induced-draft air-cooled exchangers with finned tube bundles.
Tube + tubesheet combinations
- CS / CS — utility duty
- SS304 / SS304 — clean process
- SS316L / SS316L — chloride-bearing service
- Duplex / Duplex — high-chloride, high-stress
- Ti / Ti — seawater and aggressive halide service
- CS shell + SS bundle for mixed-service economics
Tube-to-tubesheet
- Expanded + strength welded per ASME VIII Appendix A
- GTAW orbital welding for clean root passes
- Tube bundle assembly in dedicated bay
- Bundle pull-out clearance designed in from day one
Witnessed. Documented.
Pull tests
Tube-to-tubesheet pull-out tests per ASME VIII.
Helium leak
Mass-spectrometer leak testing for critical and cryogenic service.
Pneumatic
Pneumatic shell-side and tube-side tests where hydrotest is impractical.
Hydrostatic
Witnessed hydrostatic testing per code and TEMA.
Recent deliveries.
Lean Solvent Chiller
Lean solvent chiller — tubesheet and team handover photograph from shop floor.

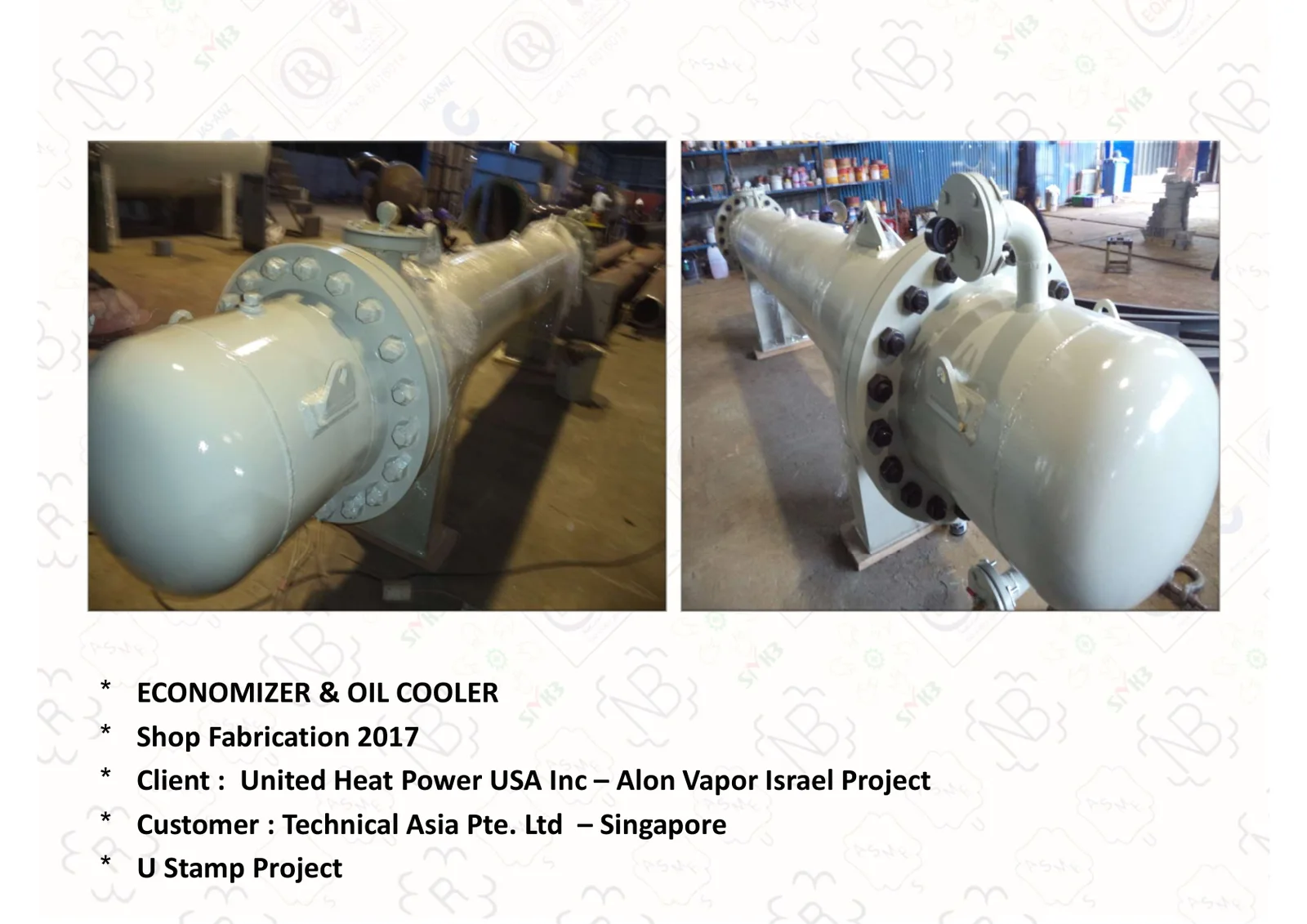

Economizer & Oil Cooler
Economizer and oil cooler package delivered for the Alon Vapor Israel project.

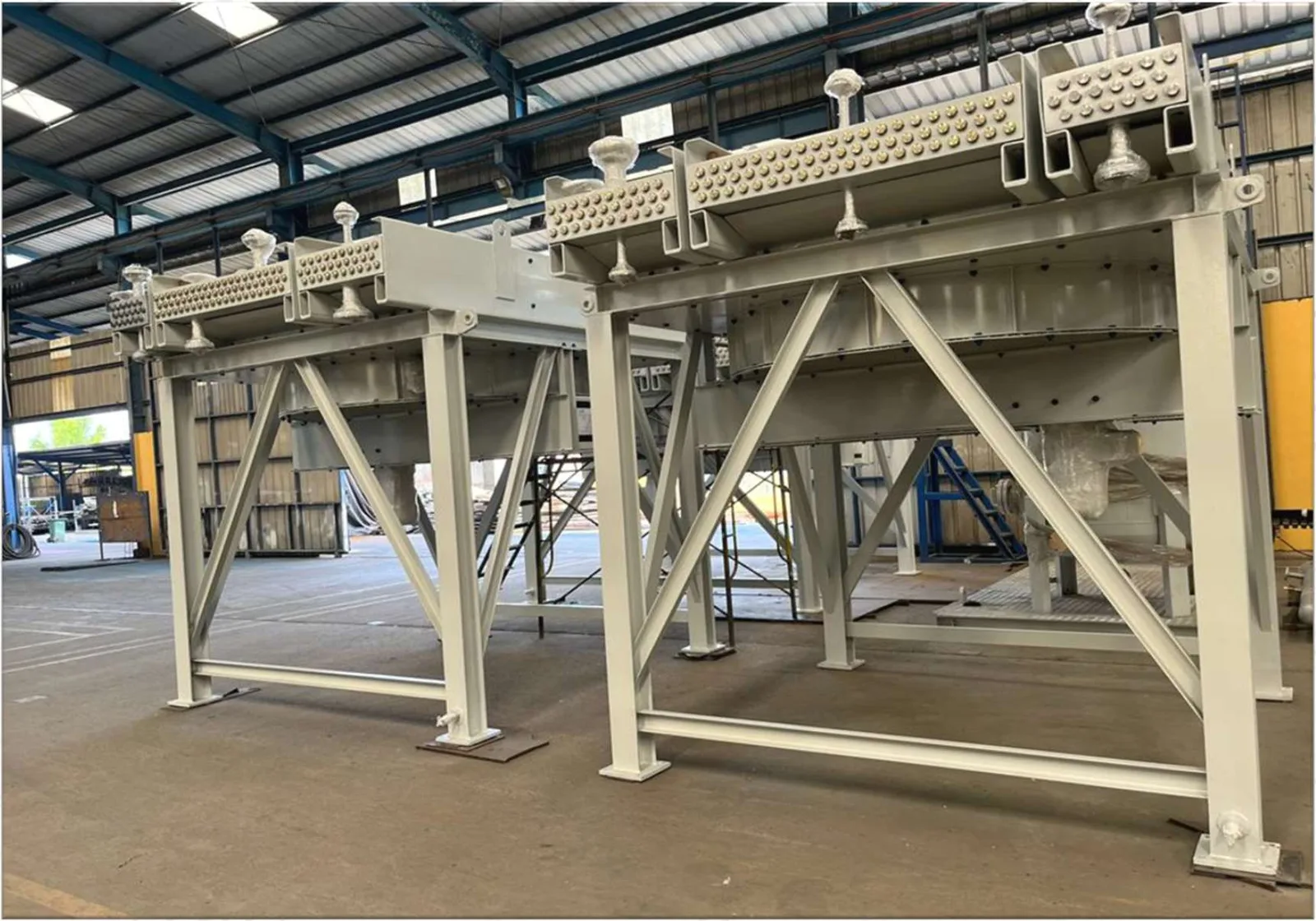

Fuel Gas Compressor Skid
Heat-exchange components integrated into a fuel gas compressor skid.
Specifying a heat exchanger? Start here.
Submissions routed directly to the senior engineering desk. Typical response under 24 hours.
Or download the datasheet template
